Magic Lantern 0.2.1 Universell

... für die Canon 550D, 60D, 600D und 50D

Magic Lantern ist eine eigenständige Erweiterung der Firmware für Canon DSLR Kameras, die zusätzlich zu der Standardfirmware gestartet wird. Ursprünglich für Filmemacher entwickelt bietet es jetzt viele zusätzliche Möglichkeiten für Video und Fotobegeisterte, inklusive manueller Tonaussteuerung, Zebras für zu helle/dunkle Bereiche, Fokus-Assistenten, Reihenaufnahmen, Bewegungserkennung und vieles mehr!

ÜbersichtEdit

Zebras

Zebras in über- und unterbelichteten Bereichen

LiveVDisp-600D

Cropmarks,Histogramm, Waveform, Follow Focus und SpotMeter

Help-FalseColor

Drücke DISP oder INFO im ML Menü um die Anleitung aufzurufen (Kontext-Sensitive Hilfe).

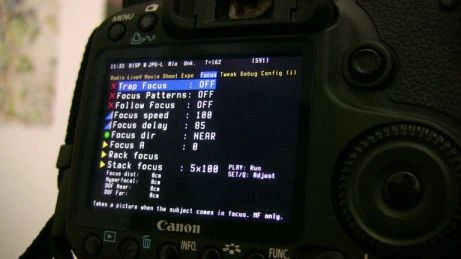

Menu50D s


Magic Lantern Menü auf der 50D

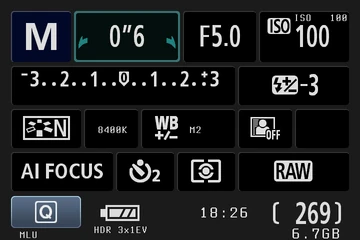

PhotoDisp-600D

600D Fotomodus mit zusätzlichen ML Infos

InfoDisplayShooting-550D

550D Fotomodus mit zusätzlichen ML Infos

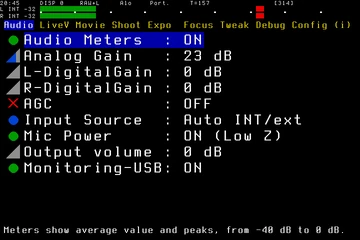

AudioMenu-550D

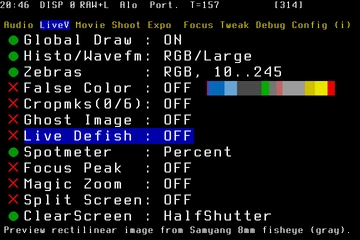

LiveVMenu-550D

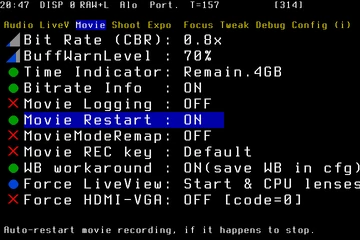

MovieMenu-550D

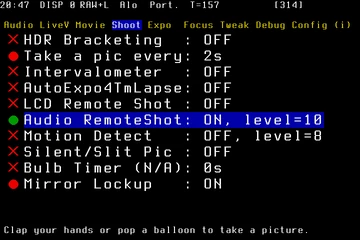

ShootMenu-550D

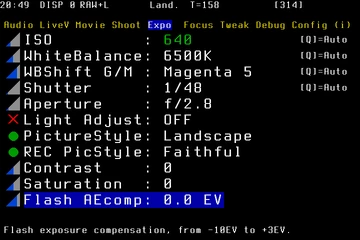

ExpoMenu-550D

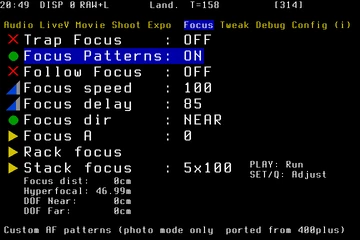

FocusMenu-550D

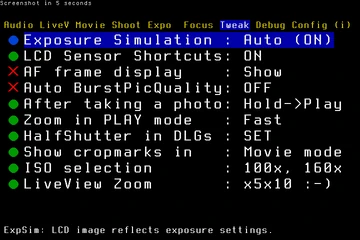

TweakMenu-550D

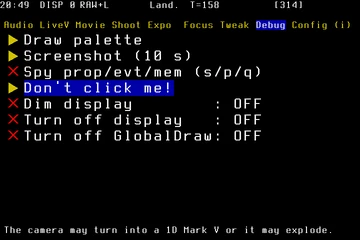

DebugMenu-550D

ConfigMenu-550D

Bekannte Fehler und Verbesserungen (für die 22. August Version) Edit

  • Any redraw operation on external monitors (HDMI or SD) may cause crash (fixed).
  • Installer may fail if started with display turned off [1] (fixed).
  • Cropmarks may cause recording stopping [2] (fixed).
  • Pressing PLAY many times quickly may crash the camera if no images/videos are on the card [3] (partially fixed).

Feature VergleichEdit

Audio Edit

Feature 550D / T2i / Kiss X4 600D / T3i / Kiss X5 60D 50D
Audio meters Yes Only when recording Yes N/A
Disable AGC Yes Yes Yes (Canon firmware also has it) N/A
Manual audio gain Yes No. Preamps can't be disabled, so it's noisier than other cameras. Yes N/A
Audio monitoring Yes yes Yes (same cable as 550D) N/A

LiveView Edit

Feature 550D / T2i / Kiss X4 600D / T3i / Kiss X5 60D 50D
Histogram, Waveform Yes Yes Yes PLAY mode only (press FUNC)
Zebra Yes Yes Yes Yes, flickers but usable (in play mode it's OK)
False color Yes Yes Yes PLAY mode only
Cropmarks Yes Yes Yes No
Spotmeter Yes Yes Yes Yes, flickers but usable
Focus Peak Yes Yes Yes Yes, flickers but usable
Magic Zoom Yes Yes Yes Yes, but unusable due to flicker
Clear Screen / clean HDMI out Yes Yes Yes No

Filmen Edit

Feature 550D / T2i / Kiss X4 600D / T3i / Kiss X5 60D 50D
Bit rate control Yes Yes Yes No
Movie logging Yes Yes Yes Not tested
Movie Restart Yes Yes Yes Not tested
Movie mode remap Yes Yes Yes Yes!
Movie REC key (HalfShutter) Yes Yes Yes Not tested
WB workaround Yes Not needed Yes Not tested
Force LiveView with manual lenses Yes Yes Yes No

Fotografieren Edit

Feature 550D / T2i / Kiss X4 600D / T3i / Kiss X5 60D 50D
HDR Bracketing Yes Yes Yes Yes
Intervalometer Yes Yes Yes Yes
LCD remote shot Yes No No No
Audio remote shot Yes No Yes No
Motion detect Yes Yes Yes Yes
Silent Pictures Yes Yes Yes Yes
Slit-Scan Pictures Yes No Yes No
Bulb Timer Yes Yes Yes Yes
Mirror Lockup Yes Yes Yes Maybe will work

Belichtungstools Edit

Feature 550D / T2i / Kiss X4 600D / T3i / Kiss X5 60D 50D
ISO Yes Yes Yes, with minor limitations N/A
Verschlusszeit Yes Yes Yes, with minor limitations N/A
Blende Yes Yes Yes N/A
Belichtungskorrektur Yesbb Yes Yes N/A
Picture Style Einstellung Yes Yes Yes N/A
Blitzbelichtungskorrektur -5...+3 EV -5...+3 EV -3...+3 EV Yes, limits not known

Focus Edit

Feature 550D / T2i / Kiss X4 600D / T3i / Kiss X5 60D 50D
Focus patterns Yes Yes Yes No (keys not working)
Trap Focus Yes Yes Yes Yes, only outside LiveView
Follow Focus Yes Yes Yes Yes
Rack Focus Yes Yes Yes N/A
Stack Focus Yes Yes Yes Yes

Tweaks Edit

Feature 550D / T2i / Kiss X4 600D / T3i / Kiss X5 60D 50D
Exposure simulation Yes Yes Yes No
LCD sensor shortcuts Yes No No No
AF frame show/hide Yes Yes Yes N/A
Auto Burst Pic Quality Yes Yes N/A N/A
After taking a photo, go to Play mode Yes Yes Yes No
Quick zoom in Play mode Yes Yes Yes No
Show cropmarks in movie mode only, or in all modes Yes Yes Yes N/A
ISO selection (limit to 100x and 160x) Yes Yes Yes N/A
LiveView Zoom Yes Yes Yes No

Debug Edit

Feature 550D / T2i / Kiss X4 600D / T3i / Kiss X5 60D 50D
Farbpalette Yes Yes Yes Yes
Screenshot Yes Yes Yes Yes
Debug logging Yes Yes Yes Yes
Prop/event/mem spy Yes Yes Yes Yes
Don't click me :) Yes Yes Yes Yes
Bildschirm aus, wenn inaktiv Yes Yes Yes not tested
Bildschirm abdunkeln, wenn inaktiv Yes Yes Yes not tested
Turn off GlobalDraw when idle Yes Yes Yes not tested

Einstellungen Edit

Feature 550D / T2i / Kiss X4 600D / T3i / Kiss X5 60D 50D
Einstellungen automatisch speichern Yes Yes Yes Yes
Jetzt die Einstellungen speichern Yes Yes Yes Yes
Einstellungsdatei löschen Yes Yes Yes Yes
Anzeige Profile Yes Yes Yes No

Magic Lantern CommunityEdit

Forums:

What others sayEdit

Why use an HDSLR and Magic Lantern? Because a Canon T2i, also known as the 550d only costs about $700 without a lens. Combine this with the great depth-of-field that can be had with SLR lenses and you have a powerful tool that in many instances can compete with cameras costing more than $10,000.

     John Wise, August 6, 2011

Adding this firmware will take your $800 camera and turn it into a $2000 beast

     Dod3032, December 22, 2010

BlogsEdit

TwitterEdit

Magic Lantern? Well if you record a lot of video it's a must have! And theres NO RISK so nothing to loose :D

     Mikey_Photo, August 17

It's like CHDK without the Gimmicks and on professional equipment. Lovin it!

     CHDKnews, August 9

just upgraded my 550D to latest magic lantern FW. Awesome again. Now with the manual integrated into the cam. Feels like ebook with 50mm ;o)

     tabascoeye, July 25

Magic Lantern firmware is the best thing to happen to DSLR shooting with the 550D. The Focus Peaking tools are amazing!

     carolinevfx, March 10

finally installed Magic Lantern on T2i...love the built in intervelometer!

     PhilipBloom, March 7

I also announce ML updates here: http://twitter.com/#!/__a1ex__

Source codeEdit

hg clone -r unified https://bitbucket.org/hudson/magic-lantern
make
make 550D
make 60D
make 600D
cd platform/550D.109
make
make docs
make zip

Compiling instructions: Build_instructions/550D
